Leaf surface temperature and humidity transmitters are essential monitoring devices for greenhouse automation, precision agriculture and plant physiology research. They directly detect temperature and humidity variations on leaf surfaces, delivering reliable data for irrigation planning, disease early warning and environmental regulation. With a wide range of products on the market, how to make the right choice? Based on a typical
RS485-type leaf surface temperature and humidity transmitter, this guide summarizes five core factors for selection.
1. Measuring Principle & Accuracy
Leaf surface humidity sensors are mainly divided into resistive and capacitive types. Working on the dielectric constant principle, capacitive sensors are designed to mimic the geometric shape of real leaves to perceive surface moisture changes, featuring high sensitivity to tiny residual water droplets. Please pay attention to the following parameters during selection:
-

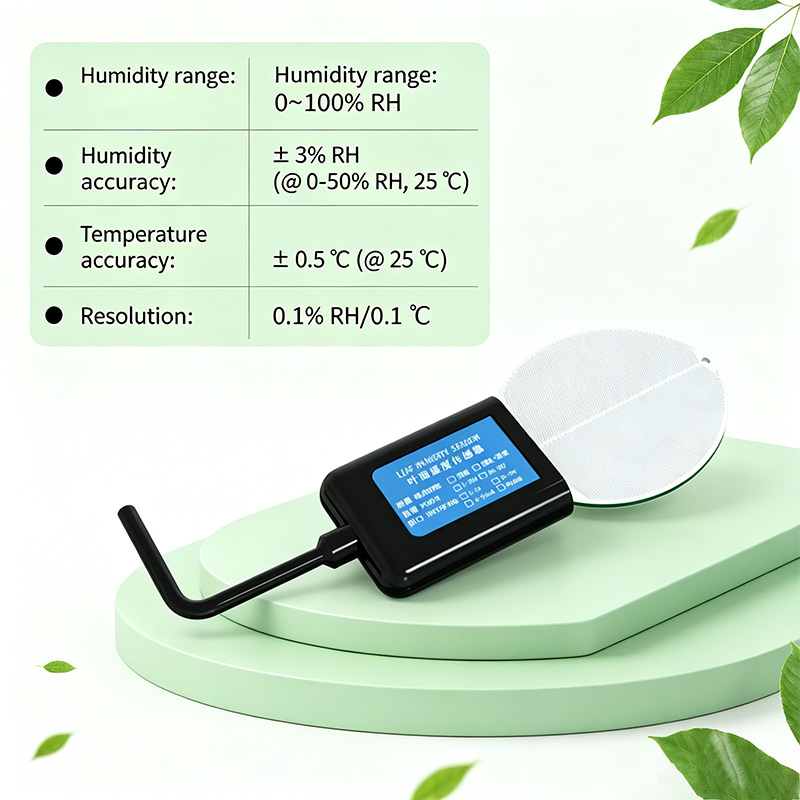

Humidity range: 0~100%RH
-
Humidity accuracy: ±3%RH (0~50%RH, at 25℃)
-
Temperature accuracy: ±0.5℃ (at 25℃)
-
Resolution: 0.1%RH / 0.1℃
High-precision sensors can truly reflect the microenvironment of leaf surfaces and reduce judgment errors.
2. Communication Method & Protocol
For systems with multiple nodes and long-distance deployment, RS485 bus paired with Modbus RTU protocol is the mainstream solution in the industry. Verify the following specifications:
-
Compatible with standard Modbus RTU (Function Code 03, 06)
-
Public register addresses (e.g., humidity: 0x00H, temperature: 0x01H)
-
Adjustable device address (1~254, factory default: 01)
-
Selectable baud rate (2400/4800/9600bps, default: 4800bps)
These features enable seamless connection with PLCs, touch screens and IoT gateways.
3. Ingress Protection & Encapsulation Material
Leaf surface sensors operate continuously in harsh environments with high humidity, rainfall and pesticide exposure, so protection performance directly determines service life.
-

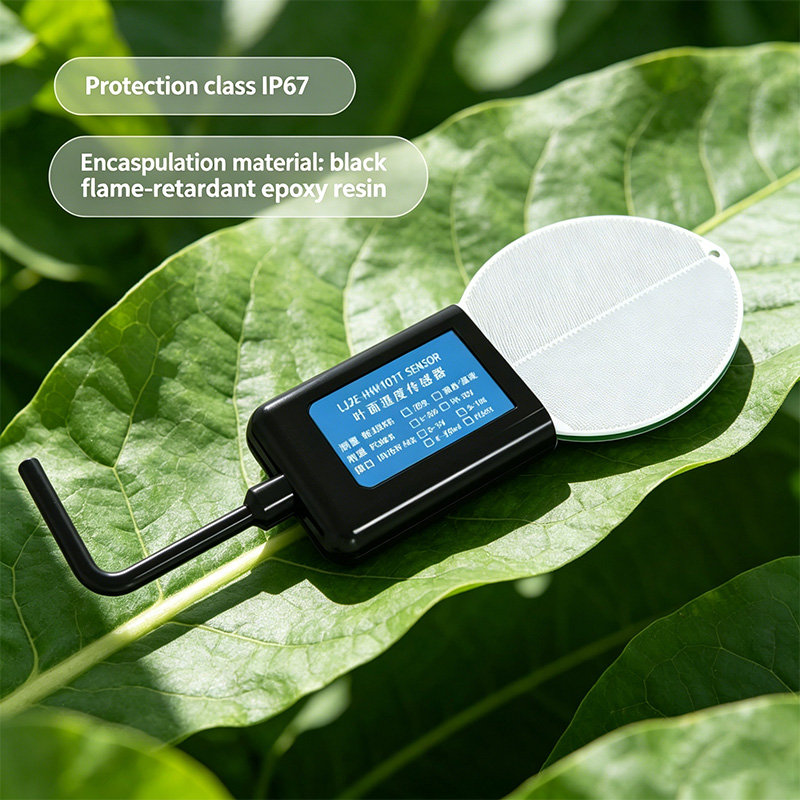

Prioritize products with an ingress protection rating of IP67 or higher
-
Black flame-retardant epoxy resin is recommended for encapsulation, which delivers excellent waterproof, moisture-proof and anti-aging performance
-
Note: Capacitive humidity sensors shall be kept away from volatile organic compounds (VOCs), otherwise measurement deviation may occur.
4. Power Supply Range & Power Consumption
Wide voltage input adapts to various on-site power supply conditions. Recommended parameters are as follows:
-
Power supply: DC 4.5~30V (compatible with 5V USB, 12V storage battery and 24V industrial power supply)
-
Maximum power consumption: 0.75W (under 12V power supply)
Low power consumption makes the device ideal for field monitoring stations powered by solar panels or batteries, effectively extending working duration.
5. Installation & Cable Specifications
Ease of installation is another key consideration:
-
Standard cable length: 2 meters, customized length available
-
Clear wiring definition: Brown - Power Positive, Black - Power Negative, Yellow - 485-A, Blue - 485-B
-
Modify the default device address (usually 01) when multiple devices are connected in parallel to avoid bus conflicts
-
A 120Ω terminating resistor is recommended at the end of the RS485 bus for long-distance communication
Besides, check the product dimensions (65×15×138.5mm) and weight to ensure compatibility with mounting brackets and binding positions.
Conclusion
To select a qualified leaf surface temperature and humidity transmitter, comprehensively evaluate measurement accuracy, communication protocol, environmental protection capability, power supply adaptability and installation convenience. Mature transmitters with RS485 Modbus output, IP67 epoxy encapsulation, wide voltage input and low power consumption can greatly cut subsequent operation and maintenance costs. This guide aims to help you make scientific selection for your projects.
